Sold Reference Used Slitting Line

Used 1500mm Slitting Line, 1-6mm, 30T Coil Capacity

Suitable for medium-gauge metal coil processing projects. Sold equipment reference. Use the recorded configuration to discuss a similar machine.

This is a sold reference. Review the confirmed specs, then move to similar-machine sourcing instead of treating it as currently available.

Sold Reference Sold reference | Sold in May 2026 | 🇨🇳 Guangdong, China Manufactured in 2020 Listed in February 2026 Reference photos Similar-machine sourcing

Confirmed Technical Parameters

Published Technical Specifications

Key engineering capacities, roll dimensions, drive configurations, and included line components.

Year2020

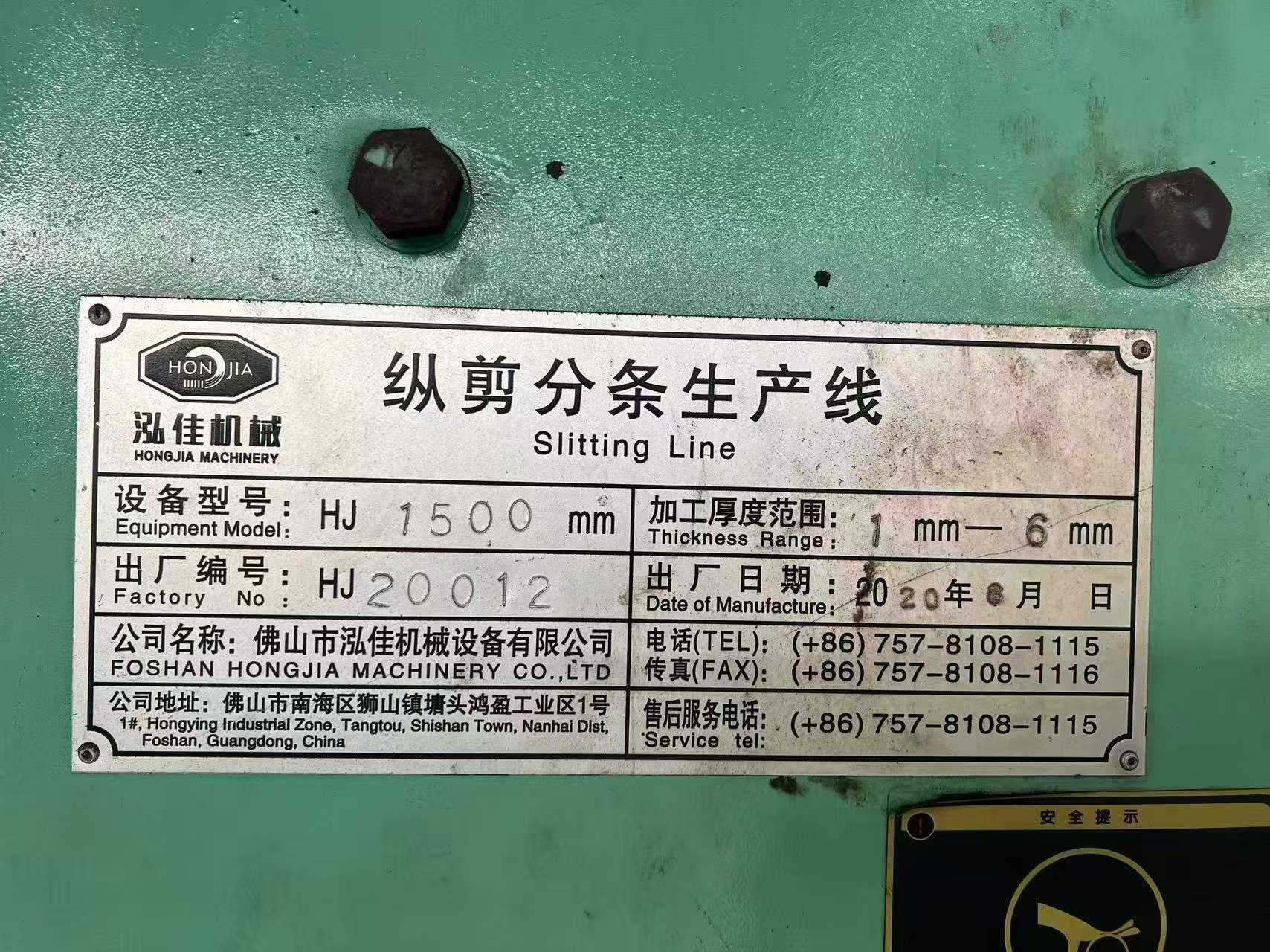

ManufacturerHongjia
Thickness Range1-6mm (~0.039" - 0.236")
Working Width1500mm (~59.1")
Coil Capacity30T (~66,000 lbs)
Uncoiler Motor45kW DC
Slitter Motor90kW DC
Recoiler Motor160kW DC
Drive / ControlDC drive system
Applicable MaterialCarbon Steel (SPCC/SPHC, Q235B/Q355B), Prepainted/Galvanized (GI/PPGI), Stainless (SUS304/430)
Downstream ApplicationTransformer silicon steel cores, welded pipe production, automotive structural stamping, HVAC duct strip
Location at listingJieyang, China

Line Composition & Mechanical Condition

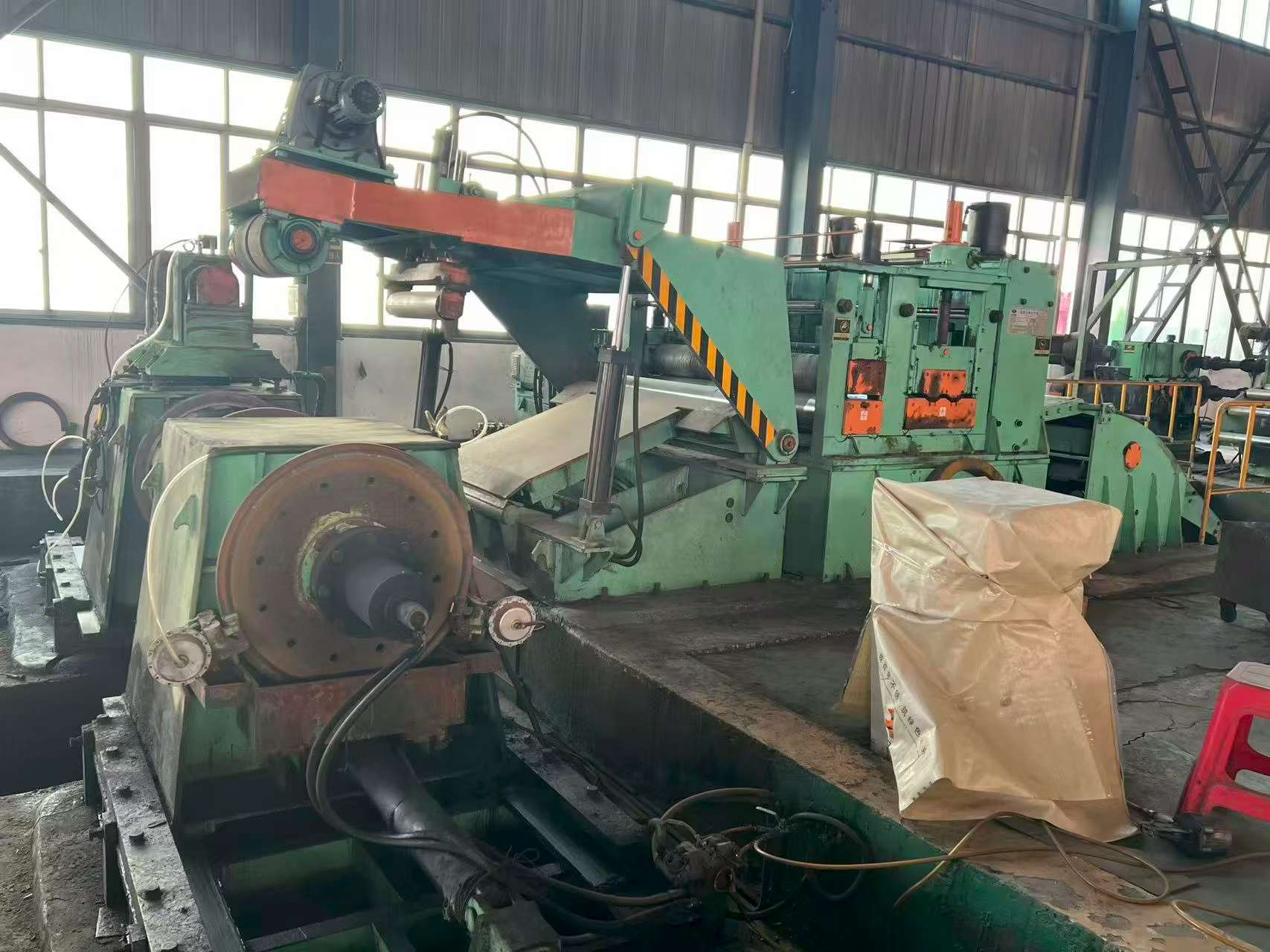

Robust 2020 Hongjia 1500mm heavy-gauge slitting line for 1.0-6.0mm coils with 30-ton capacity, inspected on-site in Jieyang.

  • Configured with dual-cone uncoiler (508/610/760mm steps), two-roll pinch plus 5-roll leveler with crop shear (45kW DC), massive Φ250mm slitter shafts (90kW DC), and 160kW DC recoiler drive with full tooling.
  • Dual-cone heavy-duty uncoiler with Phi 508/610/760mm step mandrels (30T coil weight capacity)
  • Entry coil saddle and heavy hydraulic coil loading car (step-down ground transit)
  • Two-roll pinch feeder + 5-roll pre-leveler with hydraulic crop shear (H08-150x140+FA, Cr12MoV blades, 45kW DC drive)

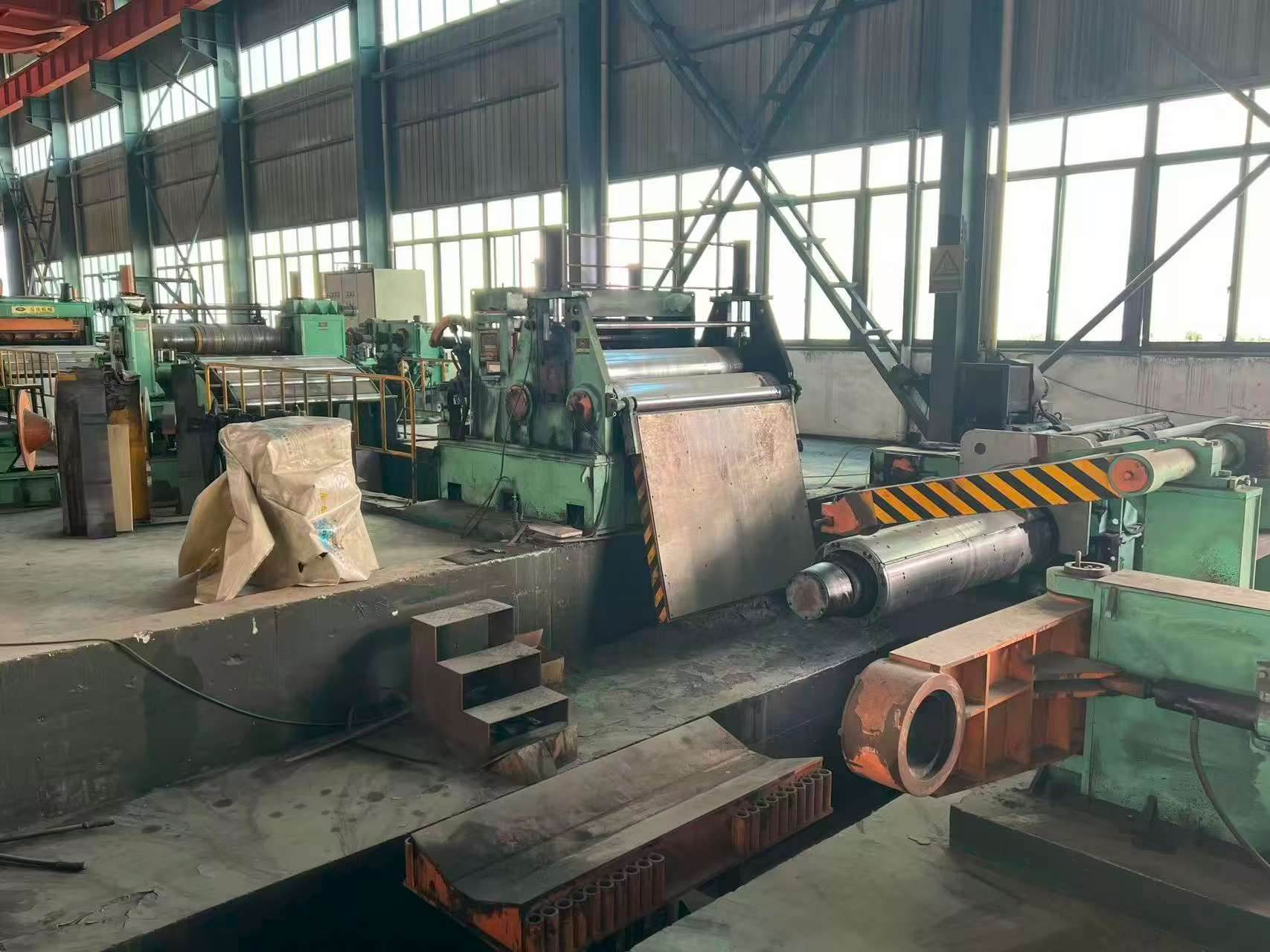

  • Heavy-duty slitter head with Phi 250mm x 1700mm forged 40Cr arbors (HRC52-55, 90kW DC drive with universal joint)
  • LD alloy slitter blades (Phi 250x Phi 370x 20mm, HRC55-58) + motorized arbor positioning
  • Dual heavy rotary scrap edge winders with level-wind oscillating guide arms
  • Deep loop pit transition bridge with hydraulic cylinder lift table support
  • Hydraulic tension pad damping station with dual pre-separator shafts and hydraulic hold-down
  • Heavy hydraulic recoiler with Phi 508/610mm expanding mandrel and push-off plate (160kW DC drive)
  • Complete OEM tooling package: 1x arbor grinding mandrel, 2x RH clamp nuts, 2x arbor blade sleeves, 1x hook spanner, 21x separator discs, 100x precision ground spacers
  • Centralized automatic grease lubrication system across primary slide ways, arbor bearings, and cylinders

Installed in Jieyang, China at the time of listing.
