Sold Reference Used Slitting Line

Used 1050mm Full Hydraulic Slitting Line, 0.3-3.0mm

Suitable for cost-sensitive thin-gauge metal coil slitting projects. Sold equipment reference. Use the recorded configuration to discuss a similar machine.

This is a sold reference. Review the confirmed specs, then move to similar-machine sourcing instead of treating it as currently available.

Sold Reference Sold reference | Sold in February 2026 | 🇵🇰 Pakistan Manufactured in 2015 Listed in October 2025 Reference photos Similar-machine sourcing

Confirmed Technical Parameters

Published Technical Specifications

Key engineering capacities, roll dimensions, drive configurations, and included line components.

Year2015
ManufacturerGuangdong Hongjia
Thickness Range0.3-3.0mm (~0.012" - 0.118")
Working Width1050mm (~41.3")
Coil Capacity16T (~35,000 lbs)
Uncoiler Motor15kW
Slitter Motor55kW
Recoiler Motor132kW
Drive / ControlDC motor drive system
Applicable MaterialCarbon Steel (SPCC/SPHC, Q235B/Q355B), Prepainted/Galvanized (GI/PPGI), Stainless (SUS304/430)
Downstream ApplicationTransformer silicon steel cores, welded pipe production, automotive structural stamping, HVAC duct strip
Location at listingChina

Line Composition & Mechanical Condition

Sold reference for a 1050mm full hydraulic coil slitting line built by Guangdong Hongjia in 2015.

  • The line features high-alloy Φ150mm precision cutter arbors, a 15kW uncoiler drive, 55kW DC slitter drive, and 132kW DC recoiler drive with full hydraulic mandrel expansion.
  • Built for light-to-medium gauge precision slitting from 0.3mm to 3.0mm up to 16 metric ton coils, equipped with hydraulic crop shear and offline scrap edge winder.

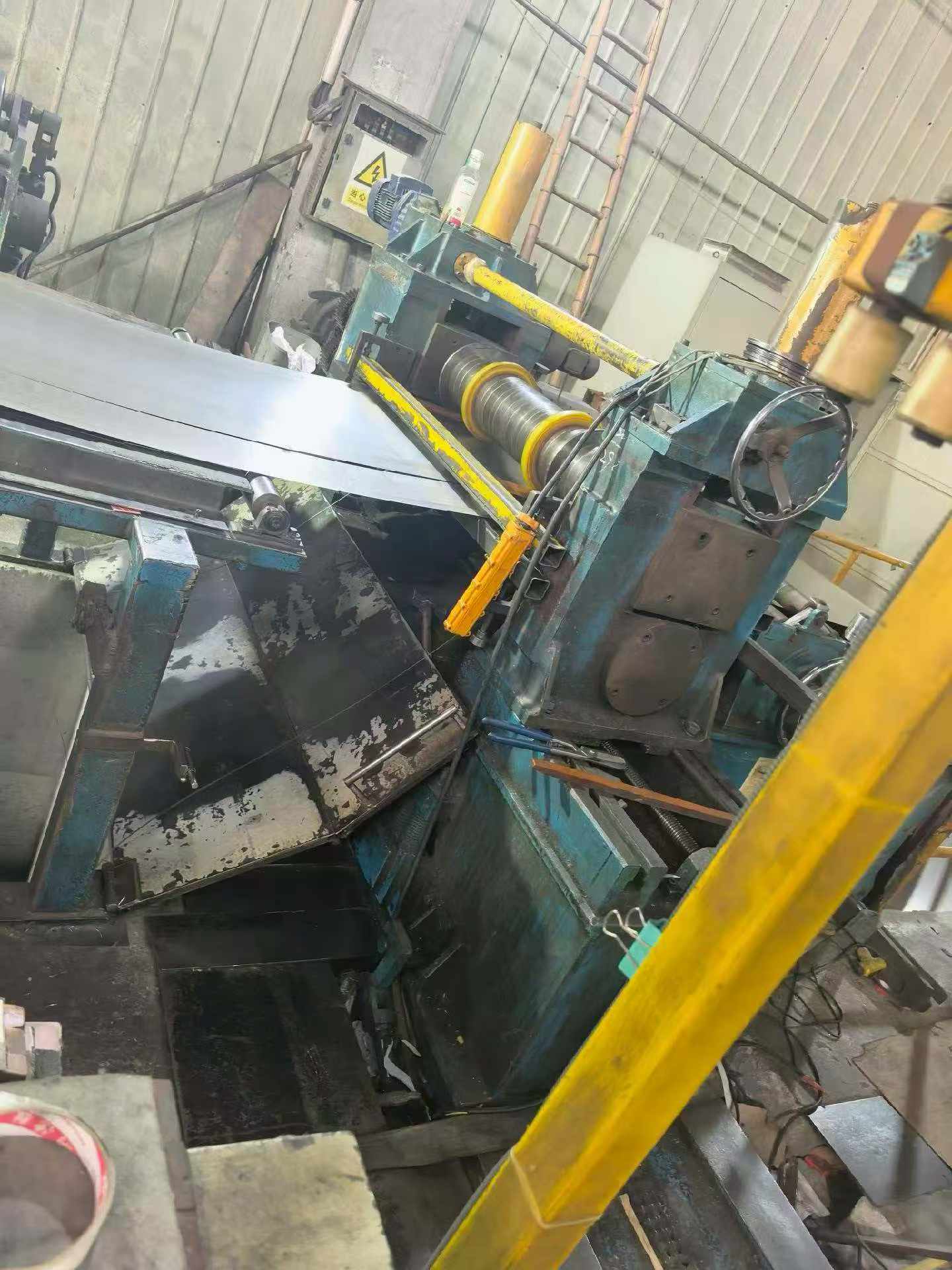

  • 1050mm hydraulic uncoiler with Φ508mm expanding mandrel (15kW drive, 16T capacity)
  • Hydraulic crop shear for coil head and tail squaring

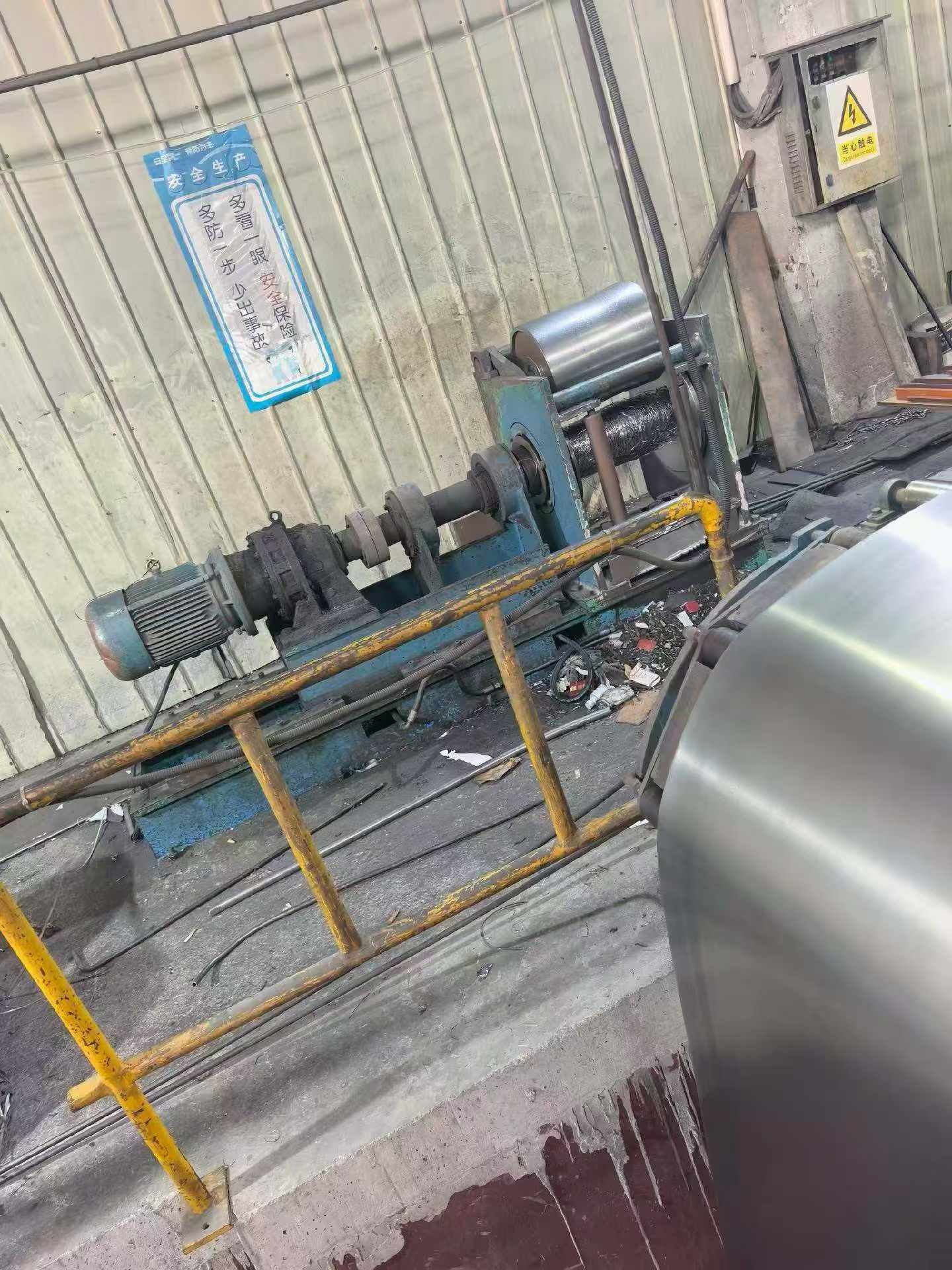

  • Heavy-duty slitter head with Φ150mm precision arbors (55kW DC drive)
  • Offline dual scrap edge winder system with speed synchronization
  • Hydraulic tension station with felt/polyurethane tension pads and deflector rolls

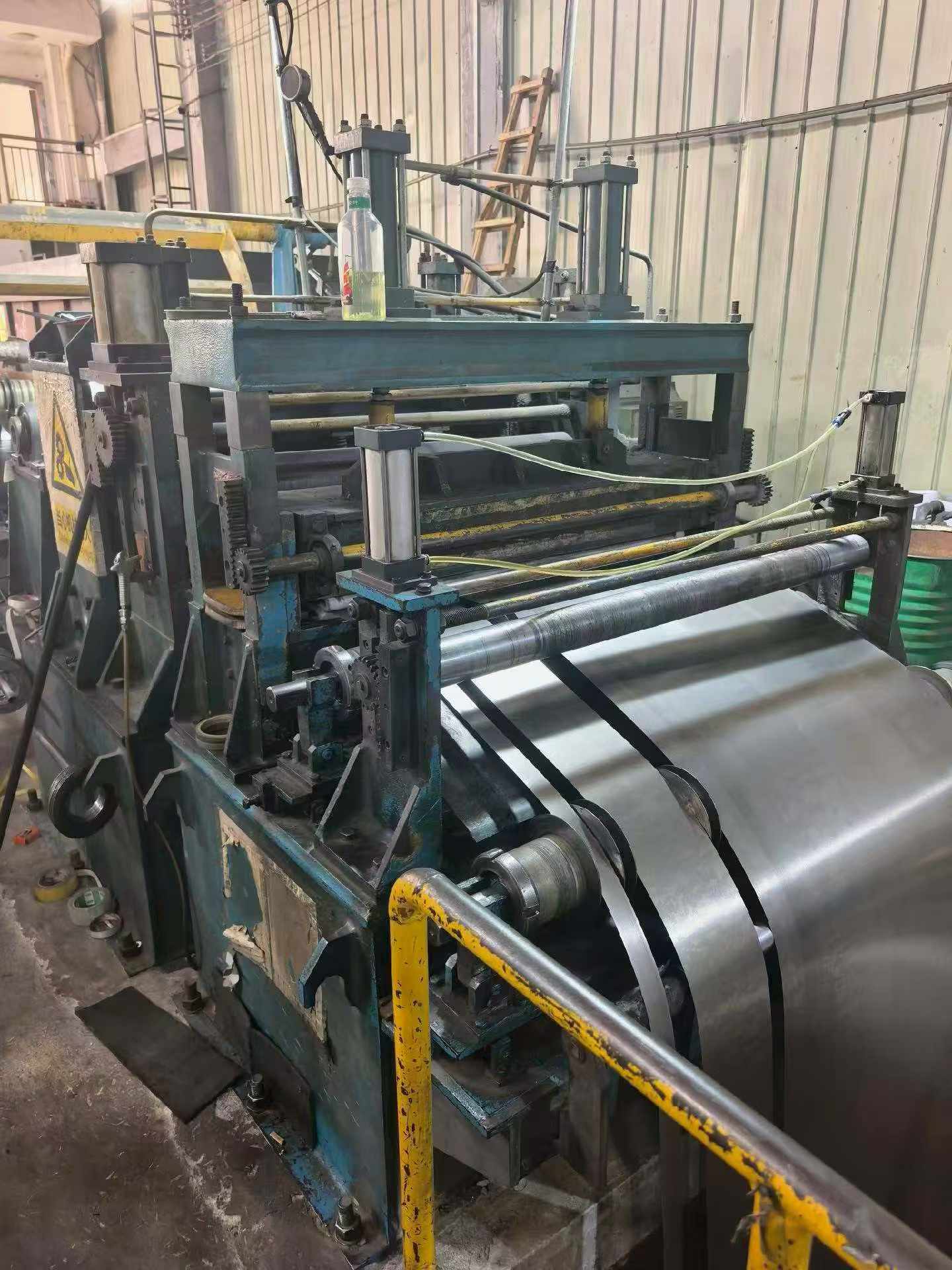

  • Heavy-duty hydraulic recoiler with Φ508mm expansion mandrel (132kW DC drive)
  • Complete electrical control desk with centralized operator controls

Used equipment at the time of listing; configuration shown for reference.
